Gabion Basket

Description du produit

Gabion boxes are made of triple twist hexagonal woven wire mesh. The wire can be zinc-5% aluminum alloy (galfan) wire, low carbon steel wire, stainless steel wire and iron wire.

Gabions and geotextiles are normally used together to reduce water velocities and to re-capture river bed sediment in streams. Flat Gabions, called River or Reno Mattresses, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour. They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures. Recently however, due to the environmental benefits associated with gabions, they are being used in many various applications and industries.

Renseignez-vous maintenant Produit suivant

Spécification de produit

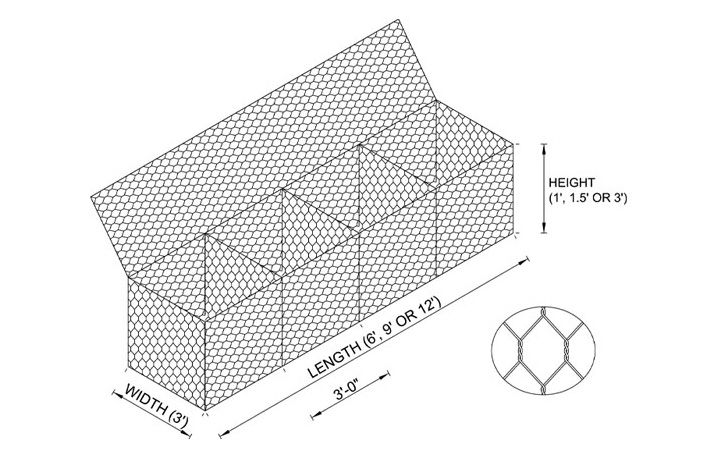

Gabion Basket
Gabion size(m)	Mesh opening	Wire diameter	Surface treatment
2×1×0.5	60 x 80mm 80 x 100mm 80 x 120mm 100 x 120mm 120 x 150mm	2.2-4.0mm	Galvanized Galfan PVC coated PE coated
2×1×1.0		2.2-4.0mm
3×1×0.5		2.2-4.0mm
3×1×1.0		2.2-4.0mm
4×1×1.0		2.2-4.0mm
6×1×1.0		2.2-4.0mm
2×1×0.3(Mattress)		2.2-4.0mm
3×1×0.3(Mattress)		2.2-4.0mm

détails du produit

type de produit:

Material: Low carbon steel wire or PVC coated wire

Wire dia.:2.0mm-4.5mm

Color: Green, Black, Silver or other colors

Opening: 60*80 80*100 80*120 100*120 100*150 120*150

Box size: 1x1x0.3, 1x1x0.5, 2x1x0.3, 2x1x0.5 ,2x1x1,4x2x1 or as your request

Product Feature

● Strength and flexibility.

● Good decotative,not only used on river area,but also can used on decorative wall

● The double twisted hexagonal mesh means that the wire will not unravel when cut which allows the gabions to be easily cut and shaped to suit project requirements.

● Strong anti-corrosion:heavy galvanized wire or Galfan wire,or glued PVC coated wire,PE coated wire to make the Gabion Basket can more improve capacity of anti-corrosion,can adapted to sea environment.

● Economy: Wire mesh gabions are less expensive than most construction materials. Graded stone fill is usually locally available. Waste materials such as crushed concrete may be specified in place of stone.

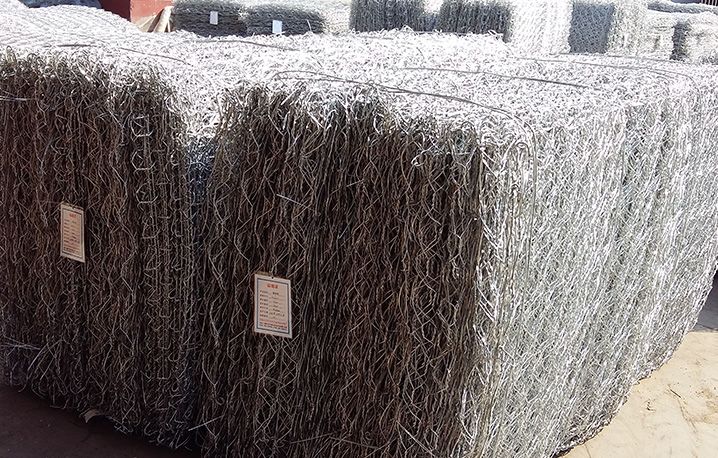

Product Packing & Shipping

50-100 gabion wire mesh /per bundle,

Wrapped with 2 to steel strips, it is compressed and to be bundled, then with pallets together

It could be made to roll package, when you get the goods, you could cut to gabion box by yourself. we also could pack according to customers' requirements.

FAQ

Q: Are you manufacturer or trader?

A: We are manufacturer, and we are in fence field for more than 20 years.

Q: What's the lead time?

A: Normally our lead time is 20-30 days after we received the down payment. Urgent order can be negotiated.

Q: Can you provide samples?

A: Yes, we can provide samples with free charge, but the express cost need you pay first. When you placed the order, we will deduct the express cost from the contract amount.

Q: How do you control the goods quality?

A: We have the strict Quality Control System. And our quality inspector will record the production process and inspection from beginning to end in the form of photos or videos to you.

Q: Do you have quality guaranteed?

A: Yes, most of our products have a more than 10 years Quality Guarantee.

Q: Could you supply Door-to-Door Delivery?

A: Yes, we are very good at Door to Door Delivery, please inform me your detailed address, then I will quote you the freight cost to your home directly.

Q: How do we go to your factory for visiting?

A: Please inform me your flight time, we will pick you up at our nearby airport, then drive to our factory for visiting.
