PVC Coated Wire

Description du produit

PVC coated wire, also called plastic coated wire, after high temperature dissolution cooled solid PVC particles uniformly wrapped in high-quality black iron wire and galvanized wire through advanced equipment.
PVC coated wire is mainly divided into PVC coated wire and PE coated wire. PVC Coating has strong adhesion, good gloss,uniform coating, high toughness,good corrosion resistance, bright color. There are more than twenty color,and most common color is dark green, grass green or black. Our wire diameter range of products is wide the inner diameter can be done from 0.1mm to 5.0mm. After coating, the outer diameter can reach 0.3mm to 6mm, packing we can do spool wire, small coil wire and big coil wire.

Spécification de produit

Due to the quality of our raw materials and imported raw environmentally friendly PVC outer perfect combination in the same product, it has better anti-oxidation, anti-corrosion, anti-cracking effect anti-cracking effect, and the service life increased 1.5 times. Our plant has strict management rules, so our cost is 10% lowers than same industry.

PVC Coated Wire is manufactured with quality iron wire. PVC is the most popular plastic for coating wires, as it is relatively low in cost ,resilient, fire retardant and possesses good insulating properties. Common colors available for PVC coated wire are green and black. Other colors are also available on request.


Materials before PVC coating: Steel wire, Galvanized wire, Redrawing wire, Annealed wire, etc.

Surface: Plastic covering or plastic coating.

Color: Green, blue, gray, white and black, other colors also available on request.

Average tensile strength: 350 N/mm² – 900 N/mm².

Elongation: 8% – 15%.

Wire diameter before coating: 0.6 mm – 4.0 mm (8–23 gauge).

Wire diameter with coating: 0.9 mm – 5.0 mm (7–20 gauge).

Plastic layer: 0.4 mm – 1.5 mm.

Wire diameter tolerance: ±0.05 mm.

Differences between plastic/PVC coating and PVC dipping:

Plastic coating is a technical processing referring to the surface processing of the metal wire. The solid plastic is melt into liquid plastic under high temperature, then the metal wire material is put into plastic flow, it is taken out after certain time.

Plastic dipping is a process referring to the surface treatment on the finished steel wire mesh. Welded wire mesh or woven wire mesh is treated with PVC dipping to achieve further protection from the weather and better anti-corrosion property.


PVC Coated Iron Wire(CUSTOMIZED CAN BE ACCEPTED)
SpecificationCore Wire DiameterDiameter after coated
0.6mm / 1.0 mm0.8mm / 1.2 mm
0.9 mm / 1.3 mm1.0 mm / 1.6 mm
1.2 mm / 2.0 mm1.4 mm / 2.0 mm
1.6mm / 2.4 mm1.8 mm / 2.6 mm
1.9 mm/ 2.9 mm2.0 mm / 3.0 mm
2.2 mm / 3.2 mm2.4 mm / 3.5 mm
2.6 mm / 4.0 mm2.8 mm / 4.2 mm
3.0 mm / 4.2 mm4.0mm / 5.0mm
Tensile Strength300-900 N/mm²
Weight/Coil0.1-500kg/Coil
PackingSmall coil of 50m,100m,150m, 200, and so on. Plastic inside and hessian woven outside, and nylon woven outside.

détails du produit

type de produit:

1. Inner wire material: Low carbon steel wire,galvanized steel wire and black annealed wire.

2. Optional color: Green, red, black, white, blue, or custom colors

3. Long lasting: PVC coated iron wire has corrosion resistance and aging resistance.

Application:

Securing trees, vines and creepers to supports and trellises, or even erecting and joining support structures;Tying bags for grain potatoes, wood, lime, coal, seed, chemical, etc., or even as a mail or laundry bag seal;
Bundling products of wire, rod, wood tube, cane, PVC, etc;
An inexpensive packaging for storage or quantity control and for binding line wire to fence posts or securing mesh to line wires or even repairs; Fixing or reinforcing steel for buildings, swimming pools, etc; Packaging of carpets, fabrics, etc. for storage and dispatch.

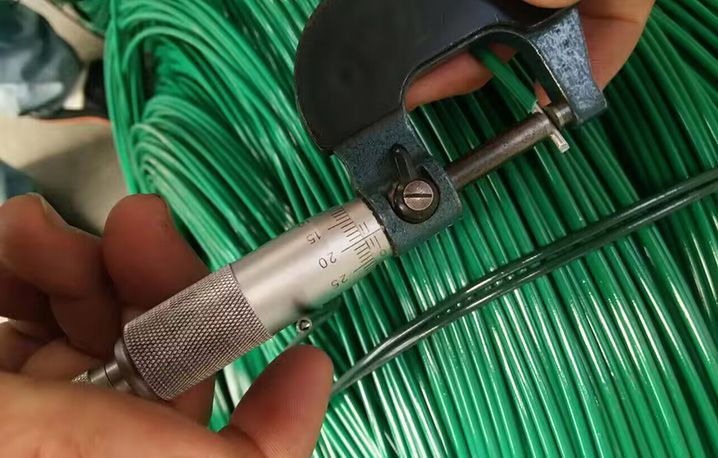

Product Feature

Product Feature

Excellent corrosion resistance.

Anti-aging property.

Anti-cracking.

Long service life.

Different colors.

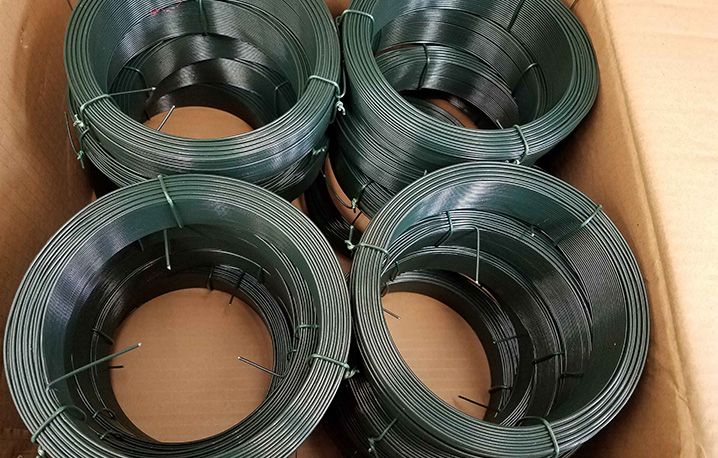

Product Packing & Shipping

Product Packing & Shipping

Packaging:

1) In coil lined with PVC strips , then wrapped with plastic or hessian cloth

2) In rolls, then by carton: 25 m/roll, 50 m/roll, 100m/roll, 150m/roll, 200m/roll, 500m/roll, and so on

Shipping:

We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.

FAQ

Q: Are you a manufacturer?

A: Yes, we are PVC Coated Wire manufacturer for over 20 years.

Q: Do you have advantage on galvanized wire quality and price?

A: Our wire has world-class quality and it is internationally accredited.

Q: How long is your lead time?

A: Lead time varies from different seasons and your order quantity;In general we can delivery your goods in 7-25 days( not including time in shipping).

Q: What's your payment terms?

A: We prefer T/T 30% as deposit, balance against B/L copy; We accept 100% LC at sight.

Q: Can you take care of shipping?

A: We take care of shipping under delivery term CNF or CIF;The buyer takes care of shipping under delivery term FOB, but we can support the buyer to find a proper shipping forwarder.

Q: Is sample available?

A: Sample of normal specifications(for example 1.2mm,1.6mm, 2.0mm, 3.0mm...) are normally available; Sample is free, but the customer pays for the freight.

Q: What are the characteristics of doing business with you?

A: We never cheat customers! Providing Quality Products, Excellent Service, Competitive Prices and Prompt Delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits.
